Fracarro ALPHA 5HD 700 Yagi Aerial

Further details of Fracarro ALPHA 5HD 700 Yagi Aerial

• Manufacturer number: 213240
• Maximum wind load (120 km/h): 5.7 kg - 55.9 N
• Maximum mast diameter: 60 mm
• Connector type: F
• Pre-assembled directors, radiator and reflectors snap onto a slide already present on the cradle; assembly is completed without the need for any tools.
• Special attention was paid to the choice of materials to achieve higher robustness.
• High gain, excellent impedance matching and excellent directivity.
• Innovative pole mount with zenith adjustment as standard and a knurled surface for optimum strength and hold to the pole, and a butterfly nut for tightening without the need for any tools.

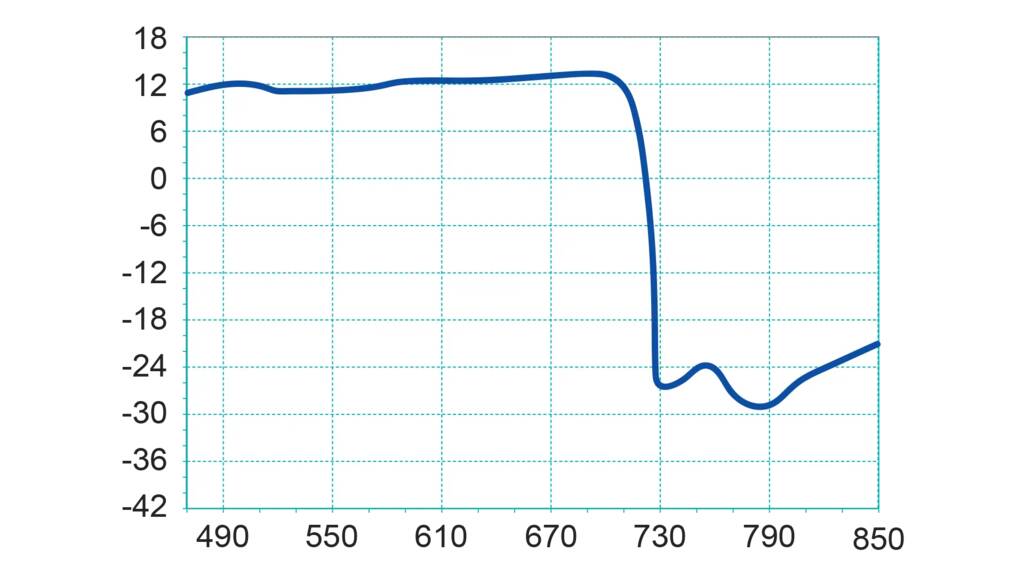

• A 5G filter has been inserted into the dipole radiator to guarantee the quality of the distributed signal and achieve excellent filtering of 5G and 4G interfering signals in the LTE band (694-860 MHz) reserved for mobile telephony.
• Exclusive design patented by Fracarro

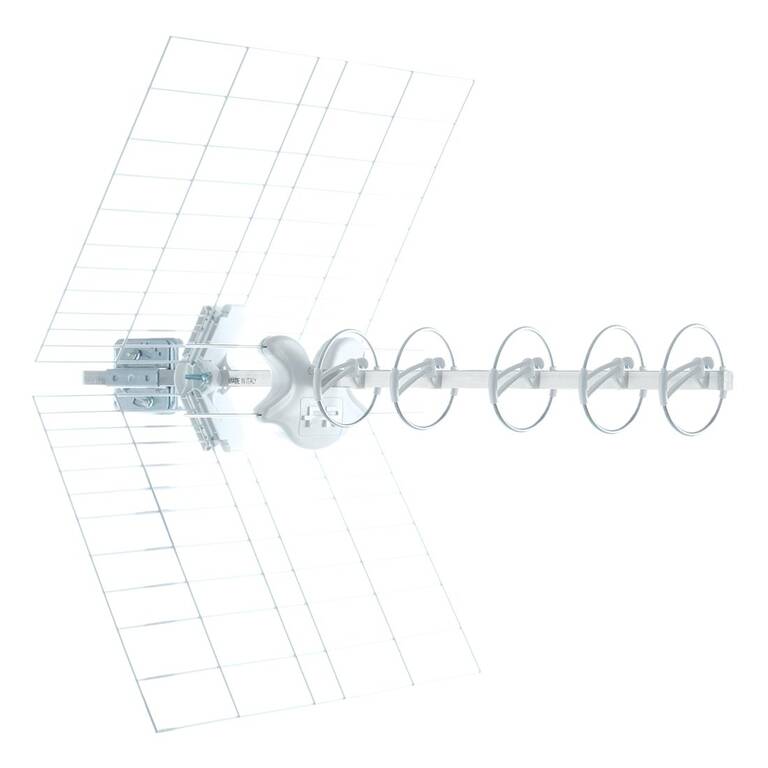

The Fracarro ALPHA 5HD 700 5G is an outdoor 5-element Yagi UHF loop antenna designed for strong and clear reception of digital TV signals while effectively filtering out interference from 5G and 4G LTE mobile signals. The antenna is an ideal choice for locations where mobile network signals may interfere with TV reception.

The product features an integrated 5G/4G LTE filter in the dipole, which reduces interference from mobile cell signals, improving picture and sound quality for DVB-T/T2 broadcasts.
