Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224

EMO-155-999
Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224
Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224
Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224
Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224
Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224

Key features of Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224

• Cable drum with movable centre
• Cable length: 40 m
• Wire cross section2,5 mm²
• Voltage: 230 V
• Ampacity: 16 A
• Protection class: IP44
• Number of sockets: 4
• Insulation type: rubber/neoprene
• Thermal cut-out fuse
• Wire: H07RN-F
• Colour: black
• Max load split: 16 A max/3 680 W
• Max. load wound up: 5,2 A max/1 200 W
• Other features: conductor loop, drum locking brake

Gross price (including 27% VAT): 156.79€ (Net price: 123.46€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Emos Outdoor Cable Drum 40m 230V 1,5mm2 P19224

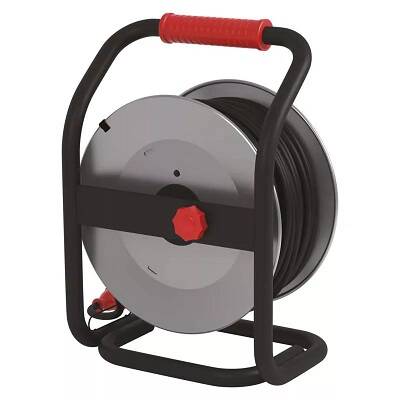

Metal cable drum 40 m 2.5 mm rubber/neoprene with 4 Schuko sockets
A reliable aid for all professionals - extension cable with robust construction spool and metal housing. Allows connection of up to four electrical appliances. Thanks to the 2.5 mm² diameter wire, the fully coiled cable can handle overloads of up to 3 680 W (16 A). A major advantage is its length of 40 m, which allows flexible, unrestricted working. The H07RN wire can withstand medium to high mechanical stress. The extension cord can also be used in wet environments as it is waterproof and heat resistant from -25 °C to +60 °C.


Cable length: 40 m
Do you need a power connection and don't want to be limited by the length of the cable? The 40 m extension cable offers a wide range of applications in many fields - whether construction or agriculture. It can be used for a wide range of applications, e.g The cable reel ensures continuous winding, saving time and energy. A locking brake prevents accidental unwinding.


The solid construction of the spool and the metal housing of the drum guarantee long life and reliable use. The advantage is the durable construction and easy handling of the spindle.

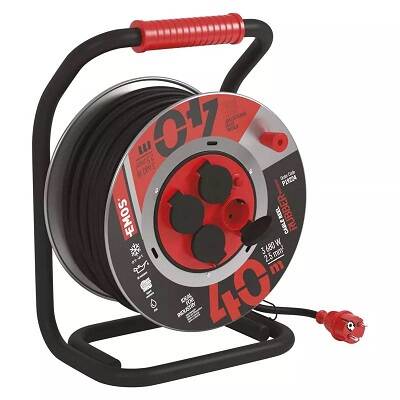

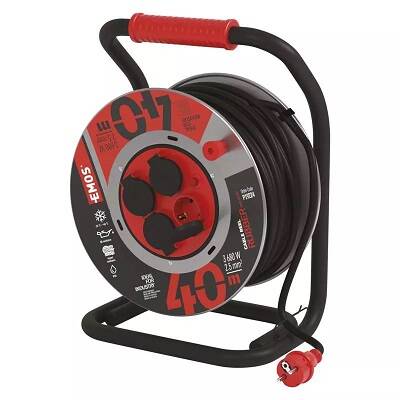

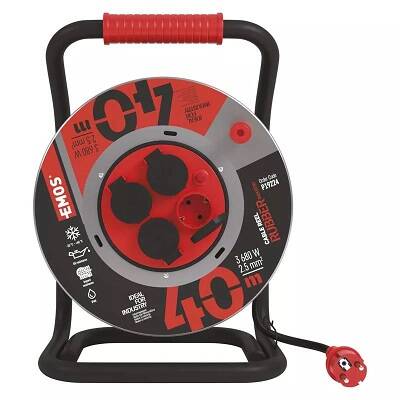

4 2P + PE SCHUKO sockets
During your work, you will appreciate the possibility to connect up to 4 electrical appliances to the 230 V~ sockets at the same time. A thermal fuse protects the connected devices. If the electrical network is overloaded, the thermal fuse will break the circuit and prevent damage to your equipment.


Protection class: IP44
Do you work in an area where the cable may come into contact with water? No need to worry. The IP44 level of protection provides protection against splashing water from all directions. In addition, electrical equipment with this level of protection resists the penetration of foreign objects such as small tools or wires (> 1 mm). So you can use the cable without fear of damage or injury. The protection level is defined in ČSN EN 60529.


2,5 mm² cross-section H07RN-F cable
Extremely durable H07RN conductor with 2.5 mm² cross-section is resistant to moisture and thermal fluctuations between -25 °C and +60 °C. It can be relied upon in all areas subject to medium to high mechanical loads, with varying temperature and humidity conditions.


Max. load for a coiled cable 230 V~: 5,2 A max/1 200 W, max. load for a fully coiled cable 230 V~: 16 A max/3 680 W.
