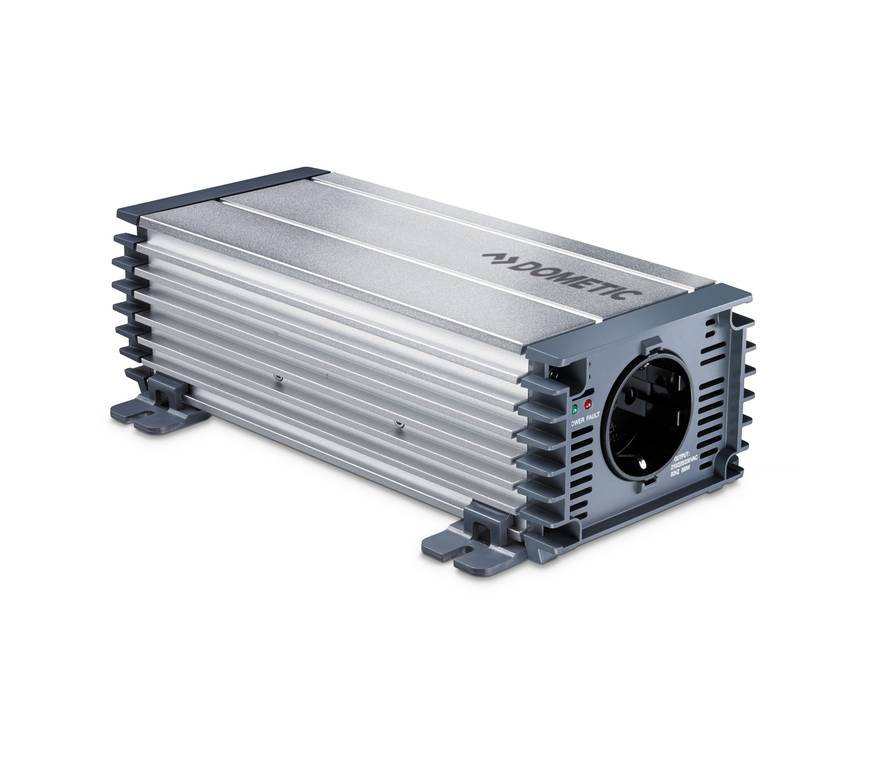

Dometic PerfectPower PP 604 inverter 550W, 24V (discontinued)

Dometic PerfectPower PP 604 inverter 550W, 24V

Key features of Dometic PerfectPower PP 604 inverter 550W, 24V

• Input voltage (DC) 24 V
• Output voltage 230 V
• Output current 2.40 A
• Power consumption at standby 250.00 W
• IP class IP20
• Current consumption - Zero load 0.25 A
• Current consumption - Standby mode 250 mA
• Energy efficiency ≤90 %
• Continuous power 25°C 550.00 W
• Operating temperature min 0.00 °C
• Operating temperature max 50.00 °C
• Dimensions product depth 222 mm
• Dimensions product height 71 mm
• Dimensions product width 129 mm
• Net weight 1.4 kg

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Further details of Dometic PerfectPower PP 604 inverter 550W, 24V

• 230 V AC sine wave like voltage output
• Suitable for supplying many common devices
• Easy installation with adjustable feet
• Reverse polarity protection prevents damage by faulty wiring
• 550 W continuous output
• 1100 W peak output

High product quality, a distinctive look, top technology, numerous comfort features: the Dometic PerfectPower series inverters provide everything a premium appliance should. The units up to 550 watts are particularly light and compact. They turn 12 or 24 volt battery voltage into a sine-wave-like 230-volt AC, which is fully adequate for a multitude of applications. Installation is quick and easy. Adjustable clip-on mounts allow for perfect adaptation to individual needs. For those looking for extra comfort and prefer activating their inverter from the dashboard, there is an additional outlet for an external switch.

The inverters in the PerfectPower PP series generate a modified sine wave voltage. That means the voltage produces a stepped curve simulating a pure sine wave. The result is an output voltage of stable amplitude and frequency, which is absolutely fine for many electric devices. For sensitive electronics, opt for an inverter producing a pure sine wave voltage (SinePower series).

The compact and lightweight Dometic PerfectPower PP 604 inverter turns 24 V battery voltage into a sine wave like 230 V alternating voltage, similar to that from a home power socket. This kind of voltage is suitable for many commonly used appliances, such as reading lamps, sandwich makers or waffle irons. The inverter can be switched on and off directly on the unit, or, more conveniently, from your dashboard, if you install an external switch to the extra outlet provided on the back of the unit.
