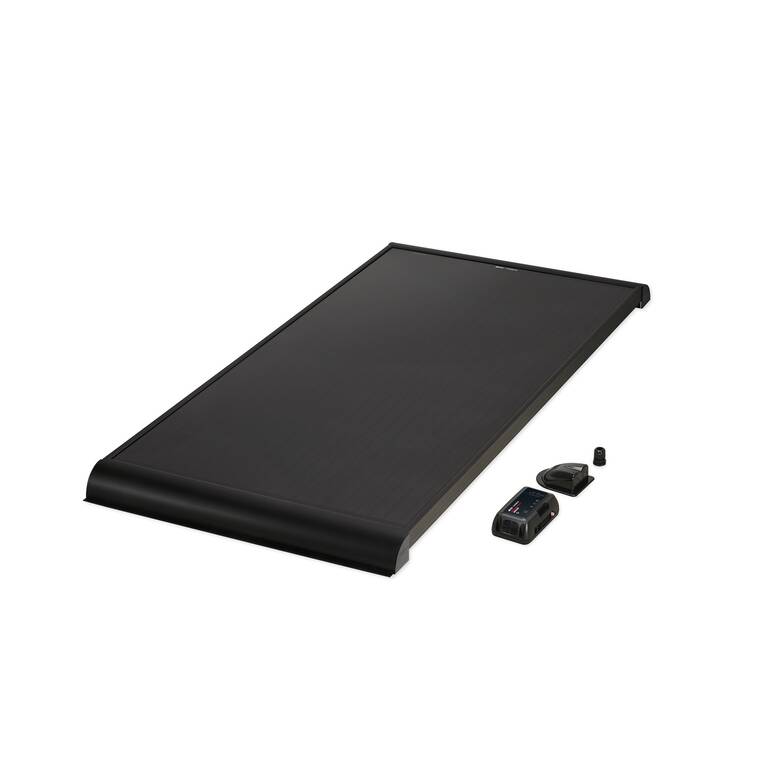

Dometic NDS Blacksolar BS 165WP Solar Panel+SCE360 Charge Controller
Key features of Dometic NDS Blacksolar BS 165WP Solar Panel+SCE360 Charge Controller
• The solar panel is designed to convert sunlight into direct current (DC) to charge rechargeable 12V batteries in vehicles or boats while driving, or to provide floating voltage for power generation
• The battery power can additionally be used as a stable power supply to operate DC-powered devices connected to the battery
• Number of cells: 32
• Nominal voltage: 12V
• Max Power: 115W
• Rest Voltage: 21,6V
• Short Circuit Current: 9,78A
• Max Voltage: 17,84V
• Max Current: 9,25A
• Size: 1495x680x60mm
• Weight: 14 Kg
• Complete set containing 1 pc BS 165WP solar panel, 1 pc SCE360 charge controller, 1 pc junction box with gasket
Further details of Dometic NDS Blacksolar BS 165WP Solar Panel+SCE360 Charge Controller
The solar panel can be used for:
• Installation on caravans and motorhomes
• Stationary or mobile use
• Extreme operating conditions (expeditionary use)
• Wind speeds up to 225 km/h
This solar panel is not suitable for the following applications
• Electric grid operation
• Portable applications
More power in less space: this high-end monocrystalline solar panel kit collects more solar energy and generates more electricity than conventional modules. This means that it produces good yields even in low light conditions such as dawn and dusk. The latest generation PERC cells provide excellent energy efficiency. The kit comes with a highly efficient 360w solar charge controller with Bluetooth functionality, which allows you to control and manage the unit using the NDS App.

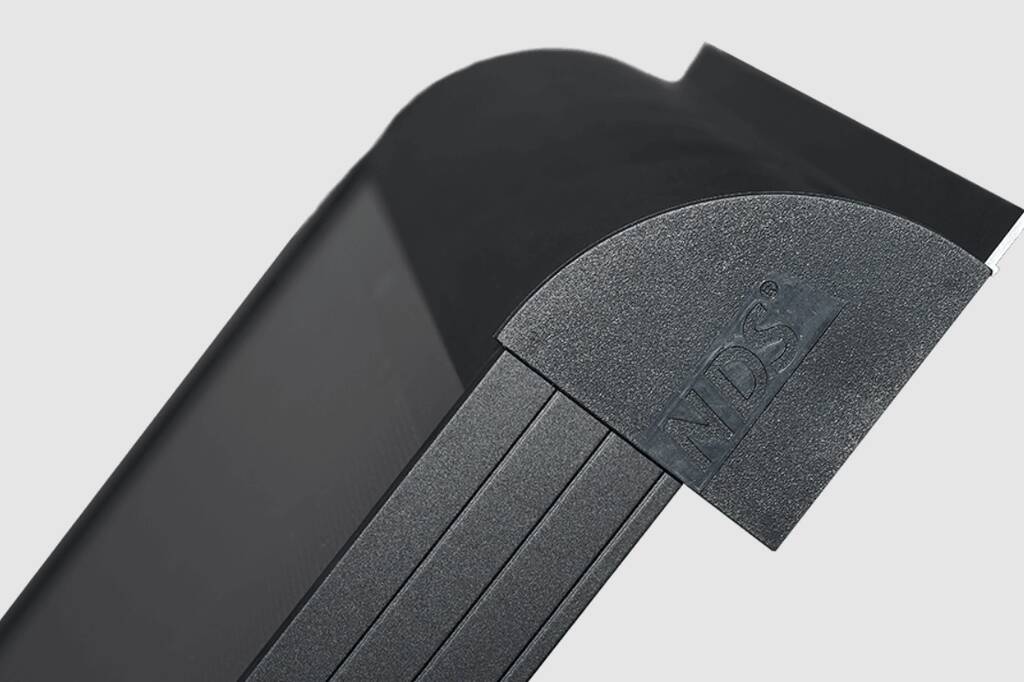

BUILT-IN CONSOLE
Special aluminium brackets integrated into the panel with aerodynamic plastic side covers make this robust panel safe, easy and quick to install.

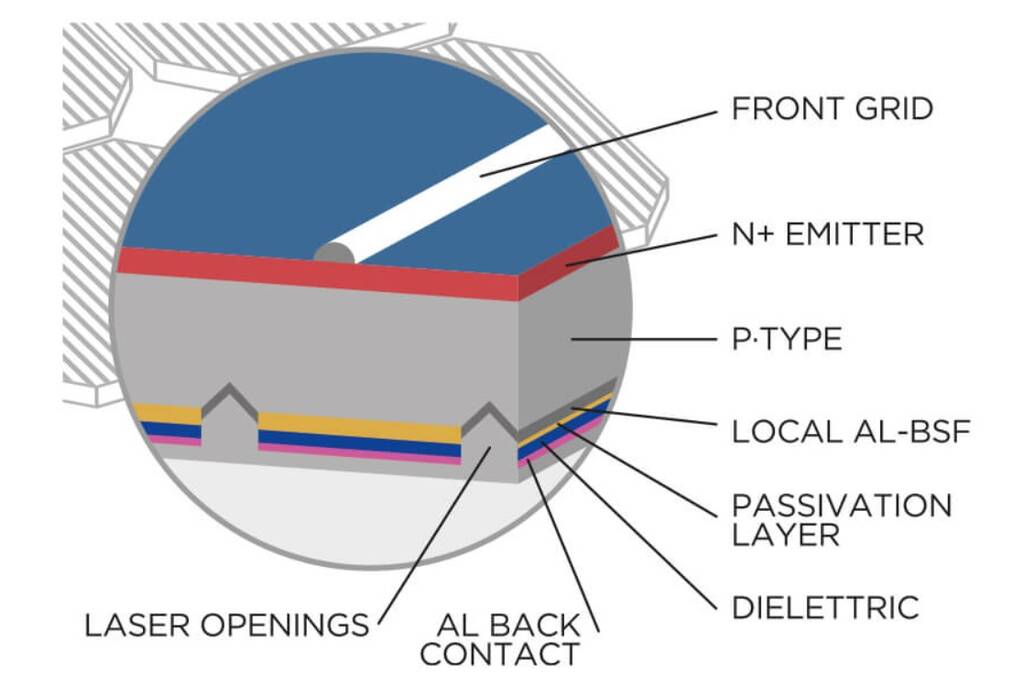

PERC CELLS
Passivated emitter and back cell: new technology to increase the efficiency of energy conversion by adding a passivated dielectric layer to the back of the cell.

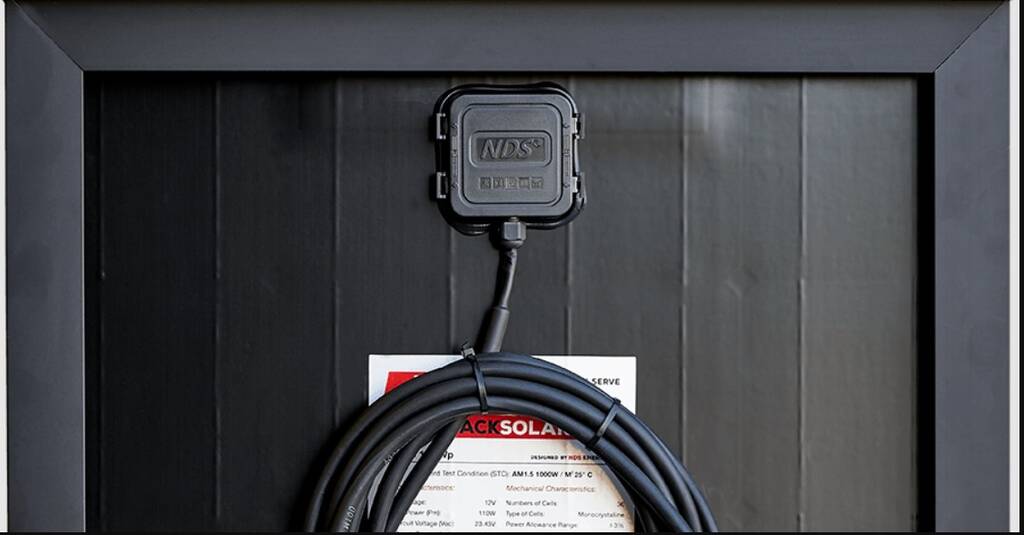

6m cable
Each panel is equipped with a 6m bipolar connection cable with an outer sheath suitable for all weather conditions.
Frame, structure, cells, strings, everything is completely black, completely black. BLACKSOLARS is the top of the range of NDS solar panels for motorhomes: they harvest more solar energy and produce more electricity than conventional modules in low-light conditions, such as dawn and dusk. The mounting bracket integrated into the frame of the photovoltaic panel allows it to be kept at an optimal distance from the mounting surface at all times, thus ensuring the necessary ventilation of the cells and, thanks to the rounded corners, the right aerodynamics.
This special monocrystalline panel is equipped with the latest generation of high-efficiency PERC photovoltaic cells, which, together with the excellent raw materials, make BLACKSOLAR the most advanced panel in the photovoltaic world, achieving an efficiency of 19.5%, the highest in the entire NDS solar product range.
