Diamond X510MH Base Station VHF/UHF Antenna

Key features of Diamond X510MH Base Station VHF/UHF Antenna

• Frequency: 144/430MHz (2m/70cm)

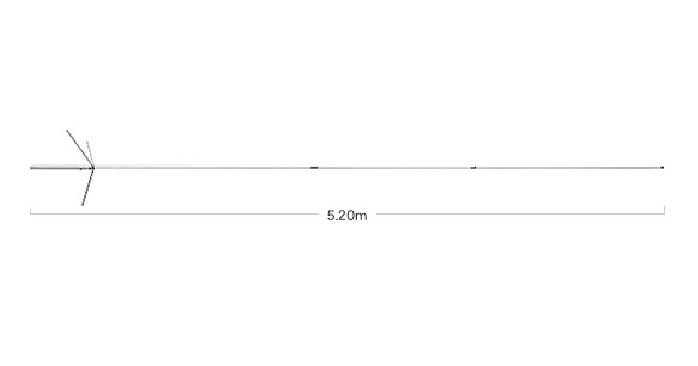

• Length: 5.2 m
• Weight: 2.08 kg
• Gain: 8.3dB (144MHz), 11.7dB (430MHz)
• Impedance: 50Ω
• Max.power rating: 350W
• VSWR: Less than 1.5:1
• Rated wind velocity: 40m/sec.
• Connector: amphenol male
• Type: 3x5/8wave C-Load(144MHz),8x5/8wave C-Load(430MHz),FRP outershell
• Mast diameter accepted:30mm to 60mm

• The product is ordered directly from the Japanese factory. The lead time is approximately 4-6 weeks if the product is in stock, otherwise it is subject to confirmation by the manufacturer.
