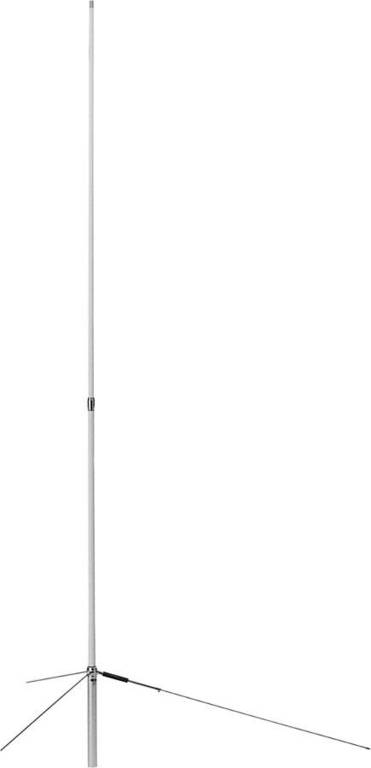

Diamond V2000 Tri-Band HF Base Antenna

Key features of Diamond V2000 Tri-Band HF Base Antenna

• Frequency: 50/144/430 MHz (6m/2m/70cm)
• Type: 50MHz - 1/2 λ; 144MHz - 2 x 5/8 λ; 430MHz - 4 x 5/8 λ
• Impedance: 50Ω
• Maximum power rating: 150W (Total)
• Maximum wind resistance: 50m/sec
• Gain: 50MHz - 2.15 dBi; 144MHz - 6.2 dB; 430MHz - 8.4 dB
• Length: 2.5 m; Radial: approx. 92cm
• Weight: 1.2 kg
• Mounting mast: Ø 30-62 mm
• Connector: UHF-female

• The product is ordered directly from the Japanese factory. The lead time is approximately 4-6 weeks if the product is in stock, otherwise it is subject to confirmation by the manufacturer.

English user guide
