Alfatronix AD SP 8000 Desktop Power Supply for Sepura Radios
Key features of Alfatronix AD SP 8000 Desktop Power Supply for Sepura Radios
• Input voltage 85-135Vac; 170-265Vac (47-440Hz)Output voltage 13.6Vdc (+/-4%)
• 9A continuous load; 108W
• Dimensions: 177mm (width) x 60mm (height) x 184mm (depth)
• Specially designed for Sepura desktop radios
• Compatible radios: SBM800 / SCM8000 / SEM8000
• Surface mount circuit technology
• Lifetime warranty
Further details of Alfatronix AD SP 8000 Desktop Power Supply for Sepura Radios
Desktop power supplies

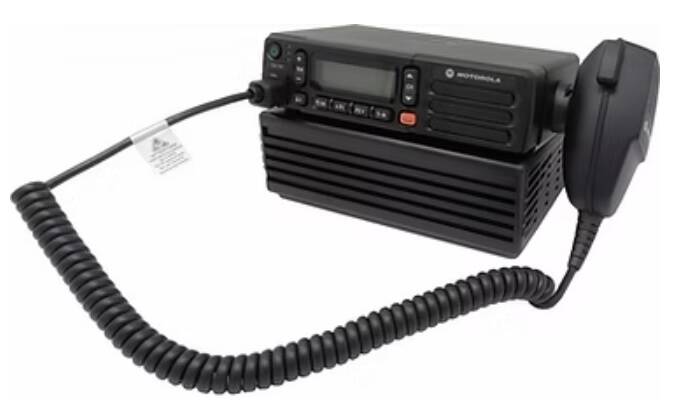

The desktop power supplies, popularly called the "wedge" due to its distinctive, ergonomically friendly shape, offer a convenient way to convert 12Vdc mobile radio transceivers for use as desktop base stations. They will operate from AC supplies, either 115V or 230V without manual adjustment and output up to 108W (9Amps).
Battery back up box
The AD Series Desktop Power Supplies include a battery back up output as standard. This can be connected to maintain charge in a lead acid battery to supply power in the event of a mains failure. As a neat alternative to a loose battery, Alfatronix also supply a battery back up box, P/N AD BBB. This is designed to fit underneath the desktop supply and radio assembly and includes a 7Ah lead acid gel battery, presenting all three components as one tidy desktop assembly. The battery back up box also includes a speaker (mounted on the front of the unit) for those wishing to use hands free radio operation.
