The Motorola SLR 1000 VHF radio repeater is part of the MOTOTRBO product family. The device is suitable for both indoor and outdoor installation; it features a compact design and is available in wall- or pole-mount versions. According to the documentation, it can be used with both traditional and trunked systems that support voice and data communication.

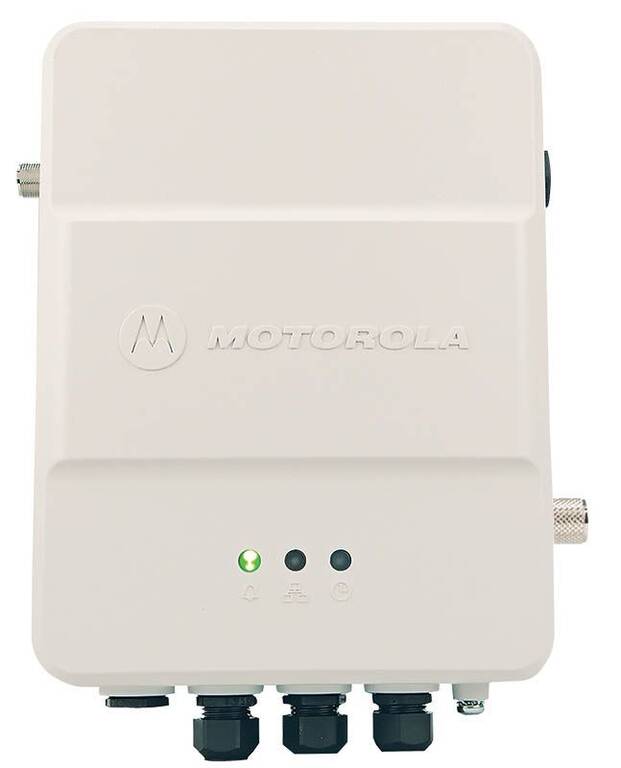

Motorola SLR 1000 VHF Radio Repeater

• Frequency range: 136-174 MHz
• RF output power: 1-10 W
• Channel spacing: 12.5 / 20 / 25 kHz
• Frequency stability: 0.5 ppm
• Frequency generation: synthesized
• Channel capacity: 64
• Digital vocoder: AMBE+2
• Dimensions: 279 x 229 x 102 mm
• Weight: 4.54 kg
• Supply voltage: 12 V DC (11.0-15.5 V)
• Standby current consumption: 0.7 A (0.63 A typical)
• Current consumption at 10 W power: 3 A (typical)
• Power supply: DC, optional AC/DC power supply support
• Operating temperature: -30 to 60 degrees Celsius
• Protection rating: IP65
• Maximum duty cycle: 100%

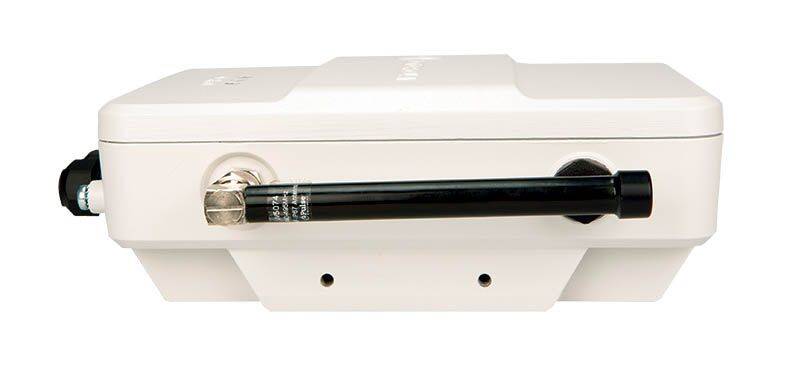

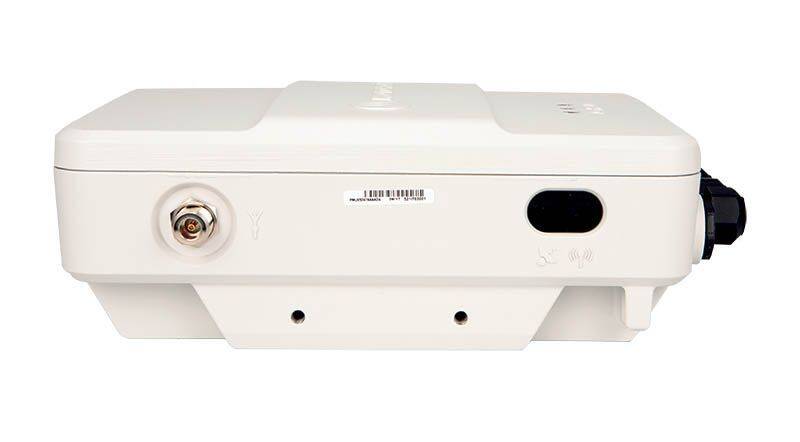

• Left-side RF connector: Rx N female
• Right-side RF connector: Tx N female

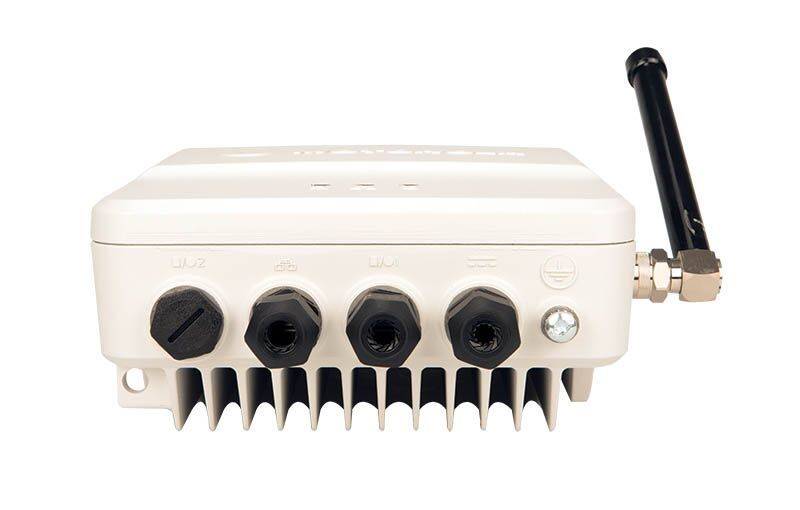

• Bottom connectors: USB-B, 1x Ethernet, RJ45 accessory connector, DC power input
• Operating mode: half-duplex or full-duplex

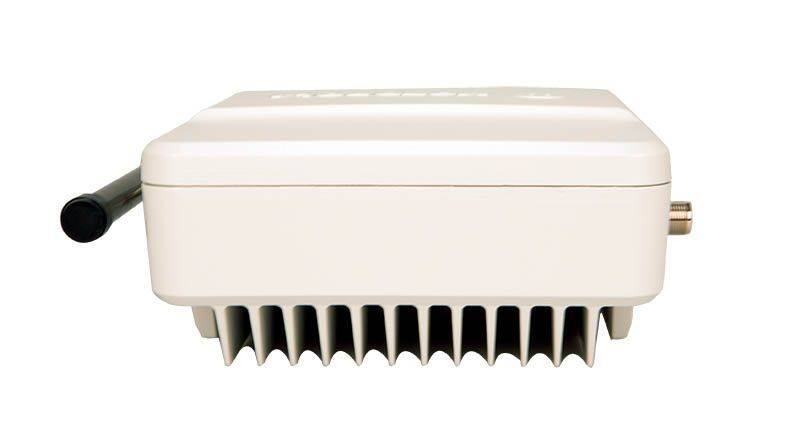

The device has an IP65 rating, providing protection against dust and water. The fanless design results in less noise, reduced particle ingress, and fewer components. The compact design allows for wall or pole mounting.

SLR 1000 VHF Receiver Technical Specifications

• Sensitivity at 12 dB SINAD: 0.3 µV (0.22 µV typical)
• Sensitivity at 5% BER: 0.25 µV (0.18 µV typical)
• Selectivity (TIA603D), 12.5 / 20 / 25 kHz: 55 / 83 / 83 dB
• Selectivity (ETSI), 12.5 / 20 / 25 kHz: 68 / 83 / 83 dB
• Intermodulation rejection (TIA603D/ETSI): 80 / 70 dB (82 / 73 dB typical)
• Interference rejection (TIA603D/ETSI): 85 / 75 dB (95 / 90 dB typical)
• Audio distortion: <3% (<1% typical)
• Hum and noise, 12.5 / 20 / 25 kHz channel spacing: -45 / -50 / -50 dB
• Blocking figure: -57 dBm

Motorola SLR 1000 VHF Transmitter Technical Specifications

• RF output power: 1-10 W
• Maximum duty cycle: 100%
• Intermodulation attenuation: 40 dB
• Adjacent channel power (TIA603D), 12.5 / 20 / 25 kHz: 62 / 78 / 78 dB
• Adjacent channel power (ETSI), 12.5 / 20 / 25 kHz: 62 / 78 / 78 dB
• 4FSK modulation accuracy: FSK error 5%, FSK amplitude 1%
• Conducted emissions: -36 dBm below 1 GHz, -30 dBm above 1 GHz
• Audio response: TIA603D / ETSI
• Audio distortion: <1%
• Hum and noise, 12.5 / 20 / 25 kHz: -45 / -50 / -50 dB
• Nominal system deviation: ±2.5 / ±5.0 / ±5.0 kHz

Compatibility and Compliance

• Supported systems: Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus, Analog Conventional, Digital Voting, MPT 1327
• Input audio level: unbalanced, adjustable, 80 mV RMS nominal at 60% RSD
• Output audio level: unbalanced, adjustable, 330 mV RMS nominal at 60% RSD
• FCC emission identifiers: 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W, 7K60FXW
• FCC type approval: ABZ99FT3096
• IC identification: 109AB-99FT3096
• ETSI 300-086
• ETSI 300-113
• TIA603D
• CE marking
• RoHS2 compliance
• UL certification
• ETSI TS 102 361-1, -2, -3 (DMR Tier II and III)

The device can be used with optional accessories, including SLR 1000 antennas, duplexers, a wall mount, a pole mount kit, an indoor or outdoor power supply kit, and a programming cable.
