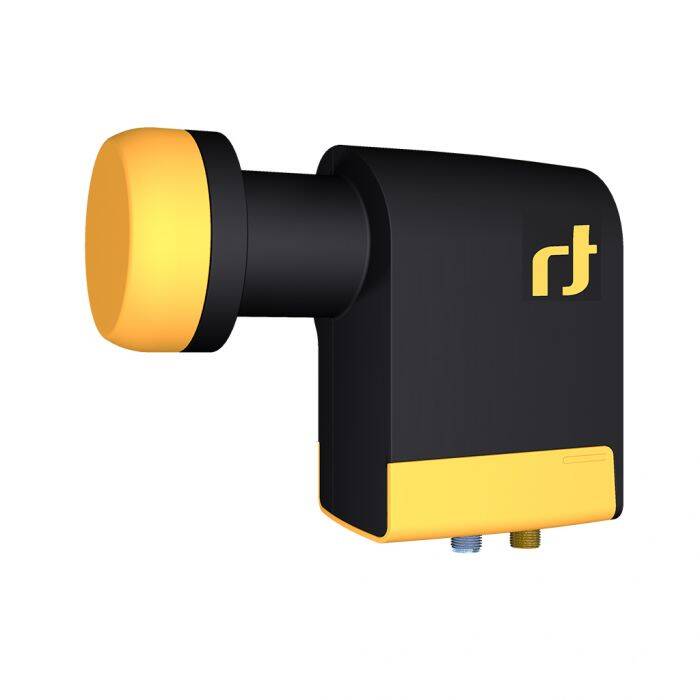

Inverto Unicable 2 Legacy Quad LNB Satellite Receiver Head

AMI-155-999
Inverto Unicable 2 Legacy Quad LNB Satellite Receiver Head

Key features of Inverto Unicable 2 Legacy Quad LNB Satellite Receiver Head

• HDTV-DVBS2compliant
• Eenables the connection of up to 4 STBs using a single cable (providing STBs are Unicable compliant) over its Unicable port as well as 2 more STB over its “Legacy” port.
• 1 satellite reception
• Impedance: 75 Ω
• Low band input frequency range10.7 GHz ~ 11.7 GHz
• Low band LO frequency: 9.75 GHz
• High band LO frequency: 10.6 GHz
• Low band output frequency range: 950 MHz ~ 1950 MHz
• Current consumption: 250 mA max. 13.5 V
• Output connector type: F-type (female)

Gross price (including 27% VAT): 46.29€ (Net price: 36.45€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Inverto Unicable 2 Legacy Quad LNB Satellite Receiver Head

A member of the innovative and award winning Unicable LNB series this highly competitive product enables the connection of up to 4 STBs using a single cable (providing STBs are Unicable compliant) over its Unicable port as well as two more STB over its “Legacy” port.The product is supplied with one splitter unit (optional) for a flexible distribution of the satellite signal at home. It was specifically designed for the European DTH markets, and provides optimized reception capabilities for High Definition transmissions. Manufactured to the highest industry quality standards and with excellent noise figure and phase noise performance, this LNB is an ideal solution for multi-room satellite reception and is a product of choice for most leading digital satellite TV operators across Europe.


• Noise figure: 0,7 dB max
• LO temperature drift ±2.5 MHz max.
• LO phase noise at 10 kHz: -90 dBc/Hz max.
• Gain ripple (at 26 MHz bandwidth): 0,75 dB
• Gain variation (full band): 4 dB max.
• Image reflection: 40 dB min.
• 1 dB compression point (output): 0 dBm min.
• Cross polarisation isolation: 22 dB min.
• Output VSWR: 2.5 : 1 max.
• In-band noise: -60 dBm max.
• Operating temperature: -30 °C ~ +60 °C
• Weight: 350 g
