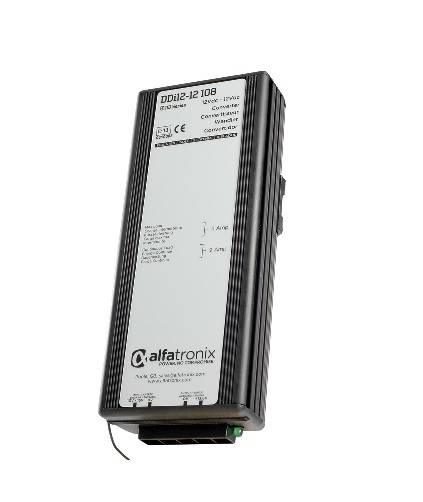

Alfatronix DDi 12-12 108W 12Vdc-12Vdc Voltage Converter 9/10A
Key features of Alfatronix DDi 12-12 108W 12Vdc-12Vdc Voltage Converter 9/10A
• Input voltage: 12Vdc
• Output voltage: 12Vdc
• Power: 108W
• 9A (10A) isolated continuous load capacity
• Dimensions: 167 mm x 87 mm x 50 mm
• Weight: 540 g
• Fixing type: click 'n' fit fixing, mounted separately using three-hole fasteners
• Switching technology
• Surface mount circuit technology
• Lifetime warranty
Further details of Alfatronix DDi 12-12 108W 12Vdc-12Vdc Voltage Converter 9/10A
Wide range of applications
The sensitivity of modern electronic equipment to varying input voltages, susceptibility to EMC interference and in some cases the need to isolate electrical circuits has made voltage stabilisation an important part of our product range. Start/Stop technology in motor vehicles has added to this problem. The DDi series offers a wide range of 12V-12V and 24V-24V isolated products that provide stable and reliable voltage for important equipment. The devices range in power from 36-240W.
The 12V-12V range includes four products in the isolator range from 36W to 168W. All products feature a modern switch mode design and employ concepts and technologies. The 12V-12V units provide stable output voltage as well as galvanic isolation for various applications.
All units consume less than 15mA of current when the load is off, which is probably less than the self-discharge current of a vehicle battery. All products are "click 'n' fit". The mounting tab is fixed at three points, allowing the device to be mounted on uneven surfaces by simply clicking the device into place. A green LED indicates when there is output from the transducer, giving the installer a sense of security and speeding up troubleshooting.
