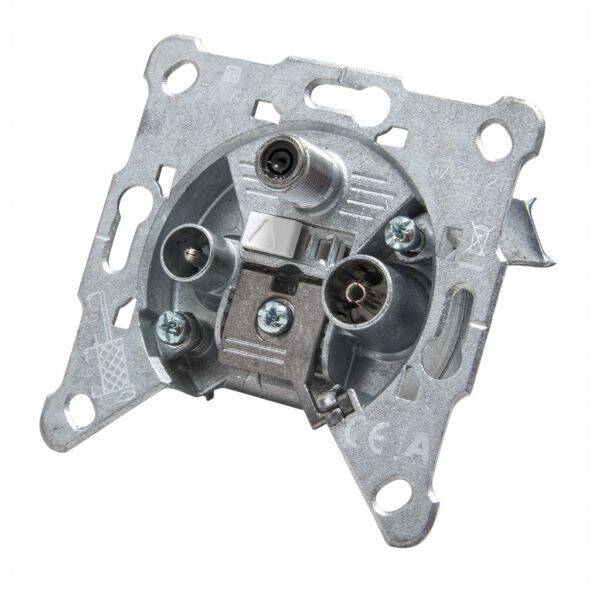

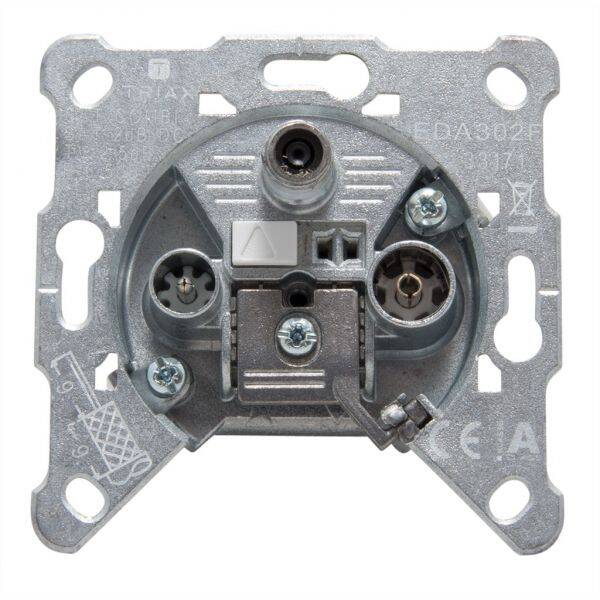

Triax EDA 302 F SAT/CATV Terminated 3-hole Socket (discontinued)
Key features of Triax EDA 302 F SAT/CATV Terminated 3-hole Socket
• Impedance: 75 Ω
• FM connector: IEC socket
• TV connector: IEC male
• Output type: terminated
• Frequency range FM: 5...118 MHz
• Frequency range TV: 5...862 MHz
• Frequency range SAT: 950...2150 (2400) MHz
• FM-SAT decoupling: 30,0 dB
• Isolation TV-SAT: >20,0 dB
• Isolation TV-FM: 20,0 dB
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
Further details of Triax EDA 302 F SAT/CATV Terminated 3-hole Socket
2 output SAT filter sockets. Special SAT antenna outputs for satellite IF distribution networks (multi-switch systems or single cable solution) and single satellite systems. F connector for SAT IF range. Additional connection of terrestrial receivers such as DVB-T receiver via IEC connectors. Selective allocation of frequency bands by filters with extremely low distribution operating loss. Direct F-connection to SAT receiver.
• Applicable cable diameters - inner conductor: 0,58...1,15 mm
• Applicable cable diameters - F-socket: 0,6...1,13 mm
• Applicable cable diameters - external conductor: 3,7...5,8 mm
• Applicable cable diameter - jacket: 4,5...7,2 mm
• Loss of IN-FM: 6,5 dB
• Loss of IN-TV: 2,5 dB
• Loss through IN-SAT: 2,0 dB
• Return loss: IN10,0 dB
• Return loss: FM10,0 dB
• Return loss: SAT9,0 dB
• Return loss: TV12,0 dB
• Shielding @ 30-300 MHz: ≥ 95,0 dB
• Shielding @ 300-470 MHz: ≥ 90,0 dB
• Shielding @ 470-1000 MHz: ≥ 85,0 dB
• Shielding @ 1000...2400 MHz: ≥ 65,0 dB
• Tensile strength - 1st inner conductor (Ø): > 25 @ 0,75 mm N/mm2
• Tensile strength - 2nd inner conductor (Ø): > 50 @ 1,13 mm N/mm2
• Filter efficiency: EN50083-2 (Class A + 10 dB)
• DC Passthrough IN-OUT: *NO - DC galvanic isolation 1kV at inner conductor
• DC Passthrough SAT: Yes (max 24VDC / 0.5A)
• MTBF (mean time between failures): >1.000.000 hours
• Main material: zinc die-cast
• Net weight: 0,104 kg
Sat IF socket box with reverse channel broadband MATV/CATV outputs (distribution-filter combination). GDA 313 F pass-through socket with diode-coupled DC circuit (13/18V, 22 kHz) for single cable solution and satellite sub-distribution* in the dwelling unit. Advantage: Sat IF operation with connection options to CATV cable network or terrestrial antenna systems (all-round antenna output socket). Note: Only one satellite receiver can be actively operated on the socket box chain if there is a cascade of multiple through sockets in multi-switch mode.
