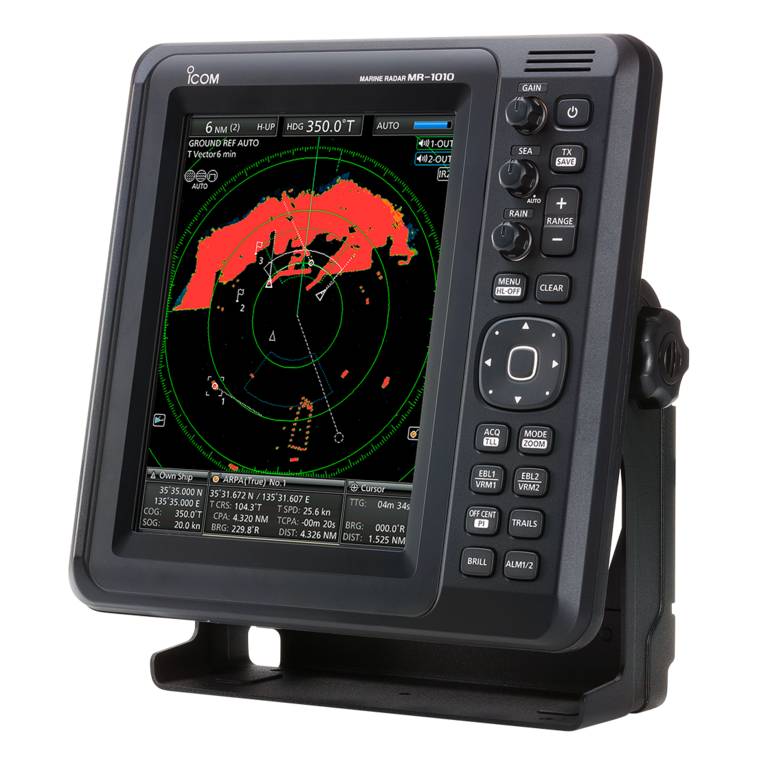

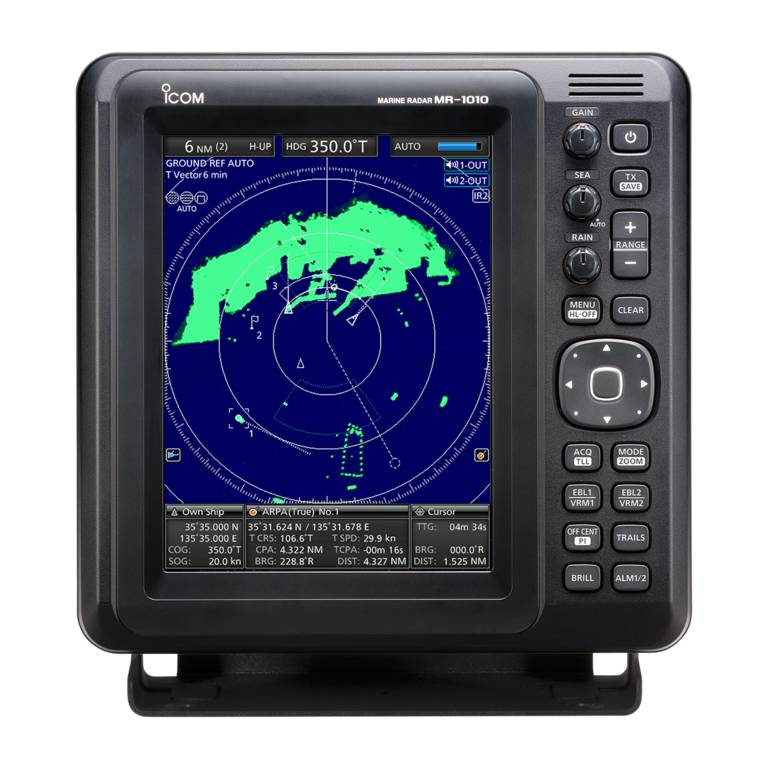

Icom MR-1010RII Marine Radar with AIS Overlay

ICOM-1242-999
Icom MR-1010RII Marine Radar with AIS Overlay
Icom MR-1010RII Marine Radar with AIS Overlay

Key features of Icom MR-1010RII Marine Radar with AIS Overlay

• 36 NM Range Observation with 4 kW Output Radome Scanner
• Simplified ARPA (Automatic Radar Plotting Aids) Function - External bearing, speed and position data required
• DSC (Digital Selective Calling) Information Function - External bearing, position and DSC data required
• AIS (Automatic Identification System) Overlay Function - External bearing, position and AIS data required
• Display type:10.4-inch Color TFT LCD
• TLL (Target Latitude Longitude) Function - External bearing and position data required
• True Trail Function - External bearing and position data required
• Scanner Unit: IPX6 (Powerful jet water protection)
• Scanner Unit Frequency: 9410 MHz ±30 MHz
• Scanner Unit Supplied system cable: 15 m
• Preheat time: 90 seconds
• Power supply: 10.2–42 V DC

Gross price (including 27% VAT): 3,597.92€ (Net price: 2,833.01€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Icom MR-1010RII Marine Radar with AIS Overlay

• Simplified ARPA (Automatic Radar Plotting Aids) Function: the simplified ARPA function helps to prevent a collision risk with other vessels or objects. Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area, (or up to ten targets can be tracked when manually set). By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing, and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits, an alarm message is displayed with a beep alarm


• DSC (Digital Selective Calling) Information Function: when connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Up to 20 DSC messages can be plotted on the radar echo. If a MOB position information is transmitted from a DSC handheld transceiver (including Icom IC-M94D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation


• AIS (Automatic Identification System) Overlay Function: When connected to an external AIS device (including Icom IC-M605, IC-M510 AIS and, IC-M506 AIS), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display


• The wide viewing angle color TFT LCD offers bright, vivid echoes with 16 steps gradient intensity. The screen intensity and screen color (day, night and user settings) can be instantly adjusted with the "BRILL" button. In addition, the auto hide information function enlarges radar echoes to full size


• Multi-Lingual Intuitive User Interface: the language setting of the MR-1010RII is selectable from multiple languages. The large eight-direction cursor key provides smooth operation even when wearing gloves. Various settings can be configured through visually intuitive operation. EUR version : English, French, Italian, Portuguese, Spanish, and Turkish


• Optional Video Output Unit: With an optional video output unit, UX-252, the MR-1010RII can be connected to an external display. Same radar echoes can be observed on the main unit and external display at the same time


• TLL (Target Latitude Longitude) Function: the MR-1010RII can mark points with icons and transfer the position data with NMEA TLL sentences to other NMEA 0183 devices such as an external plotter

Standard Accessories of Icom MR-1010RII Marine Radar with AIS Overlay

DC Power Cable

DC Power Cable


Mounting Bracket

Mounting Bracket
