Triax TDH 811 Frontend DVB-S/S2 Module (discontinued)

TRI-066-999

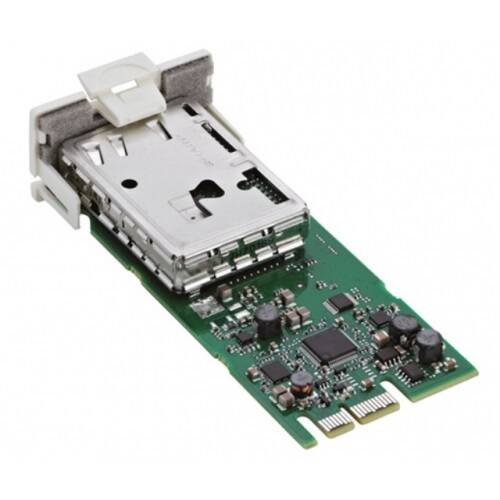

Triax TDH 811 Frontend DVB-S/S2 Module

Key features of Triax TDH 811 Frontend DVB-S/S2 Module

鈥 Power supply voltage: 12 V
鈥 Input frequency range: 950-2150 MHz
鈥 Input level: -65 and -25 dBm
鈥 Input impedance: 75 惟
鈥 Input return loss: > 10 dB
鈥 Connectors: F input connector
鈥 DVB-S compatible, up to 45 MS/s
鈥 DVB-S2 compatible, up to 37 MS/s
鈥 DiSEqC compatible (1.1)
鈥 Dimensions: 29 mm (height) x 132 mm (depth) x 50 mm (width)
鈥 Manufacturer's article number: 692820

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Further details of Triax TDH 811 Frontend DVB-S/S2 Module

The DVB-S/S2 frontend module is an input module for the reception of digital satellite signals in the TDH 800 headend system. The module is capable of receiving a complete transponder and transmitting all services on the selected frequency to the TDH 800 pool.


The DVB-S/S2 front-end module includes an IF tuner with antenna loop-through and a QPSK/8PSK demodulator with serial transport stream input to the TDH 800 headend system.


鈥 Software download via the TDH 800 system management module
鈥 Pre-configuration from/to file via the system control module
鈥 Logging to file/flash
鈥 Programmable LNB control: 0/14/18V - 0/22kHz
鈥 All services are transferred to the TDH 800 pool
鈥 Power supply current OFF 250/ ON 550 mA
鈥 Transmit frequency range 950-2150 MHz
鈥 Transmit output return loss > 8 dB
鈥 Passing gain 0 and +6 dB
鈥 Isolation between passband and RF input > 24 dB
鈥 V/H programmable < 2,4 V/mA LO/HI programmable 10 卤 1 kHz DiSEqC level 1.1
鈥 Temperature - operating -10 to +50 掳C
鈥 Temperature - storage temperature between -20 and +70 掳C
鈥 Humidity - operating between 20 and 80 %
鈥 Humidity - storage temperature between 10 and 90 %
